安装

官方文档链接：https://docs.gitlab.cn/jh/index.html

使用外部 PostgreSQL 服务配置 GitLab：https://docs.gitlab.cn/jh/administration/postgresql/external.html

以下安装方式使用内置postgresql

安装必要组件

shell
1
yum -y install curl policycoreutils-python openssh-server perl

rpm方式

源地址：https://mirrors.tuna.tsinghua.edu.cn/gitlab-ce/yum/el7/

shell
1
2
3
wget https://mirrors.tuna.tsinghua.edu.cn/gitlab-ce/yum/el7/gitlab-ce-12.9.0-ce.0.el7.x86_64.rpm

rpm -ivh gitlab-ce-12.9.0-ce.0.el7.x86_64.rpm

Docker方式

shell
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
mkdir -p ~/data/gitlab/config ~/data/gitlab/logs ~/data/gitlab/data
docker pull gitlab/gitlab-ce:12.9.0-ce.0

docker run -d  -p 443:443 -p 80:80 -p 222:22 --name gitlab --restart always -v /home/gitlab/config:/etc/gitlab -v /home/gitlab/logs:/var/log/gitlab -v /home/gitlab/data:/var/opt/gitlab gitlab/gitlab-ce:12.9.0-ce.0


docker exec -it gitlab bash
vim /etc/gitlab.rb   # 编辑站点地址
gitlab-ctl reconfigure  # 配置

docker restart gitlab

#服务控制
docker start gitlab
docker stop gitlab
docker rm gitlab

Docker-compose方式

yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
version: '3'
services:
    gitlab:
      image: 'gitlab/gitlab-ce:13.5.7-ce.0'
      restart: 'no'
      environment:
        TZ: 'Asia/Shanghai'
        GITLAB_OMNIBUS_CONFIG: |
          external_url 'http://192.168.56.100'
          gitlab_rails['gitlab_shell_ssh_port'] = 2222
          unicorn['port'] = 8888
          nginx['listen_port'] = 80
      ports:
        - '80:80'
        - '443:443'
        - '2222:22'
      volumes:
        - ./gitlab/config:/etc/gitlab
        - ./gitlab/repo:/var/opt/gitlab
        - ./gitlab/logs:/var/log/gitlab

GitLab 域名/IP或端口设置【无论docker还是rpm都需要照下进行修改】

编辑gitlab.yml配置文件(如果出现无法导出项目时进行此操作,如果没有,则跳过此步)

plaintext
1
vim /opt/gitlab/embedded/service/gitlab-rails/config/gitlab.yml

找到host，并修改为你要配置的域名或IP

bash
1
2
3
4
5
6
## GitLab settings
 gitlab:
   ## Web server settings (note: host is the FQDN, do not include http://)
   host: 192.168.0.201
   port: 8080
   https: false

编辑gitlab.rb文件(更多配置介绍)[https://blog.csdn.net/weixin_42506599/article/details/119788015]

plaintext
1
vim /etc/gitlab/gitlab.rb

找到external_url，修改成对应的域名或IP

bash
1
2
3
4
5
## Url on which GitLab will be reachable.
## For more details on configuring external_url see:
## https://gitlab.com/gitlab-org/omnibus-gitlab/blob/master/doc/settings/configuration.md#configuring-the-external-url-for-gitlab
external_url 'http://192.168.0.201:8080'
gitlab_rails['gitlab_shell_ssh_port'] = 222

更新配置

shell
1
gitlab-ctl reconfigure

GitLab指令

shell
1
2
3
4
gitlab-ctl start
gitlab-ctl status
gitlab-ctl stop
gitlab-ctl restart

k8s安装方式

  • depoyment.yaml
yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
---
kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: gitlab
  name: gitlab
  namespace: devops
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: gitlab
  template:
    metadata:
      labels:
        k8s-app: gitlab
      namespace: devops
      name: gitlab
    spec:
      containers:
        - name: gitlab
          image: gitlab/gitlab-ce:12.9.0-ce.0
          imagePullPolicy: Always
          ports:
            - containerPort: 30088
              name: web
              protocol: TCP
            - containerPort: 22
              name: agent
              protocol: TCP
#          resources:
#            limits:
#              cpu: 1000m
#              memory: 2Gi
#            requests:
#              cpu: 500m
#              memory: 512Mi
          volumeMounts:
            - name: gitlab-conf
              mountPath: /etc/gitlab
            - name: gitlab-log
              mountPath: /var/log/gitlab
            - name: gitlab-data
              mountPath: /var/opt/gitlab
          env:
            - name: gitlab_HOME
              value: /var/lib/gitlab
      volumes:
        - name: gitlab-conf
          hostPath:
            path: /data/devops/gitlab/config
            type: DirectoryOrCreate
        - name: gitlab-log
          hostPath:
            path: /data/devops/gitlab/logs
            type: DirectoryOrCreate
        - name: gitlab-data
          hostPath:
            path: /data/devops/gitlab/data
            type: DirectoryOrCreate
      serviceAccountName: gitlab
---
apiVersion: v1
kind: Service
metadata:
  labels:
    k8s-app: gitlab
  name: gitlab
  namespace: devops
spec:
  type: NodePort
  ports:
    - name: web
      port: 30088
      targetPort: 30088
      nodePort: 30088
    - name: slave
      port: 22
      targetPort: 22
      nodePort: 30022
  selector:
    k8s-app: gitlab
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: gitlab
  name: gitlab
  namespace: devops
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: gitlab
  namespace: devops
rules:
  - apiGroups: [""]
    resources: ["pods","pods/exec","pods/log","secrets","nodes"]
    verbs: ["create","delete","get","list","patch","update","watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: gitlab
  namespace: devops
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: gitlab
subjects:
  - kind: ServiceAccount
    name: gitlab
    namespace: devops
---
# 给个clusterrole 避免出现"Failed to list *v1.Node: nodes is forbidden: User \"system:serviceaccount:de..."的错误
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: gitlab
rules:
  - apiGroups: [""]
    resources: ["pods","pods/exec","pods/log","secrets","nodes"]
    verbs: ["create","delete","get","list","patch","update","watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: gitlab
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: gitlab
subjects:
  - kind: ServiceAccount
    name: gitlab
    namespace: devops

备份与还原

官方文档参考：https://docs.gitlab.cn/jh/raketasks/backup_restore.html

Gitlab备份、迁移、恢复和升级参考：https://cloud.tencent.com/developer/article/1622317

更新

gitlab跨版本升级

gitlab的升级不能随意升级，需要根据官方文档的升级路线进行升级。如当前版本为10.6.3 -> 目标版本为13.5.7.

不能直接升级为13.5.7这个版本，需要按 该地址-官方upgrade-path 指示进行升级

配置仓库【任选其一，国内源下载会快一些】

官方仓库

shell
1
curl https://packages.gitlab.com/install/repositories/gitlab/gitlab-ce/script.rpm.sh | bash

国内源仓库

shell
1
2
3
4
5
6
7
8
9
10
11
12
# 第一步
vi /etc/yum.repos.d/gitlab_gitlab-ce.repo

# 第二步: 添加如下内容在最下面
[gitlab-ce]
name=Gitlab CE Repository
baseurl=https://mirrors.tuna.tsinghua.edu.cn/gitlab-ce/yum/el$releasever/
gpgcheck=0
enabled=1

# 第三步
yum makecache fast

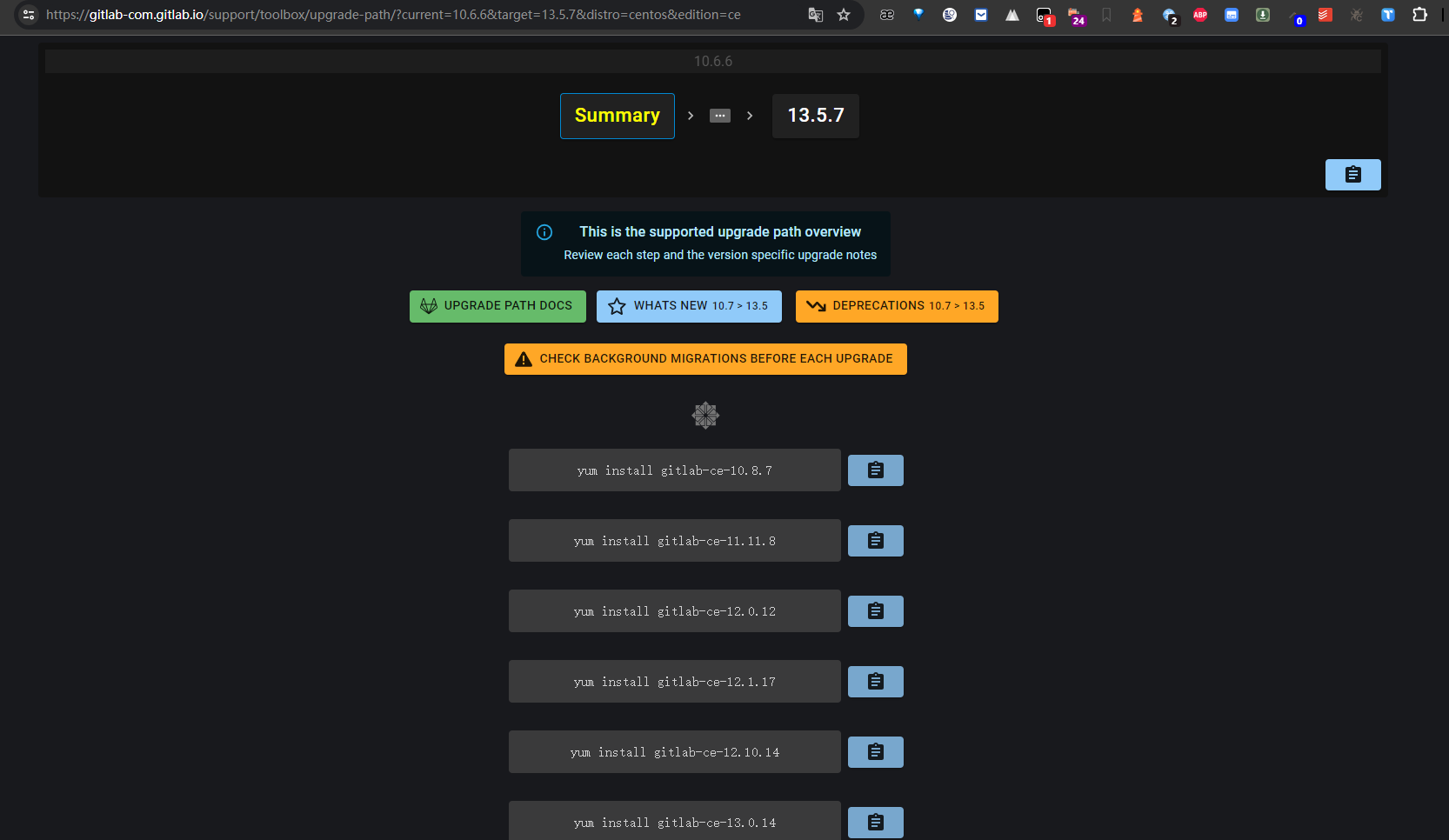

然后按照上图，从低到高一步一步执行 yum install gitlab-ce-{版本} 就好

每次升级完一个版本，可以登录进行验证，如果页面出现502，不要惊慌，有可能是gitlab启动中

观察日志

观察日志，查看是否有错误

shell
1
2
3
4
5
6
7
8
# 查看所有的logs; 按 Ctrl-C 退出
sudo gitlab-ctl tail

# 拉取/var/log/gitlab下子目录的日志
sudo gitlab-ctl tail gitlab-rails

# 拉取某个指定的日志文件
sudo gitlab-ctl tail nginx/gitlab_error.log

Gitlab关闭停用其他不需要的组件

默认运行的组件

shell
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
[root@gitlab opt]# gitlab-ctl status
run: alertmanager: (pid 3474) 1289193s; run: log: (pid 1915) 1260609s
run: gitaly: (pid 3581) 1289192s; run: log: (pid 1901) 1260609s
run: gitlab-exporter: (pid 3536) 1289193s; run: log: (pid 1909) 1260609s
run: gitlab-kas: (pid 3475) 1289193s; run: log: (pid 1924) 1260609s
run: gitlab-workhorse: (pid 3476) 1289193s; run: log: (pid 1914) 1260609s
run: grafana: (pid 3482) 1289193s; run: log: (pid 1906) 1260609s
run: logrotate: (pid 68197) 355s; run: log: (pid 1903) 1260609s
run: nginx: (pid 3494) 1289193s; run: log: (pid 1912) 1260609s
run: node-exporter: (pid 3493) 1289193s; run: log: (pid 1908) 1260609s
run: postgres-exporter: (pid 3495) 1289193s; run: log: (pid 1918) 1260609s
run: postgresql: (pid 3561) 1289193s; run: log: (pid 1911) 1260609s
run: prometheus: (pid 3512) 1289193s; run: log: (pid 1900) 1260609s
run: puma: (pid 3576) 1289194s; run: log: (pid 1905) 1260610s
run: redis: (pid 3547) 1289194s; run: log: (pid 1921) 1260610s
run: redis-exporter: (pid 3518) 1289194s; run: log: (pid 1904) 1260610s
run: sidekiq: (pid 3602) 1289193s; run: log: (pid 1922) 1260610s

配置文件将相关配置项enable值改为 false

shell
1
2
3
4
5
6
redis_exporter['enable'] = false
postgres_exporter['enable'] = false
node_exporter['enable'] = false
grafana['enable'] = false
prometheus['enable'] = false
alertmanager['enable'] = false

重新加载配置

shell
1
gitlab-ctl  reconfigure
