使用metricbeats监控k8s

简介

Metricbeat 是服务器上的轻量级收集器，用于定期收集主机和服务的监控指标【包括events】。
Metribeat 默认收集系统指标，但也包含大量其他模块，用于收集 Nginx、Kafka、MySQL、Redis 等服务的指标。支持的模块的完整列表可以在 Elastic 官网查看：https://www.elastic.co/guide/en/beats/metricbeat/current/metricbeat-modules.html。

kube-state-metrics

官方地址：https://github.com/kubernetes/kube-state-metrics

注：对于使用 prometheus-operator/kube-prometheus 的用户， kube-prometheus 将 kube-state-metrics 作为其组件之一。
如果已经安装了 kube-prometheus，则无需安装 kube-state-metrics。

首先，我们需要安装 kube-state-metrics，这是一个组件，它是一个侦听 Kubernetes API 并公开有关每个资源对象状态的指标数据的服务。

安装 kube-state-metrics 也很简单，在对应的 GitHub 仓库下有对应的安装资源清单文件在

bash

$ git clone https://github.com/kubernetes/kube-state-metrics.git
$ cd kube-state-metrics
# 如果没配置k8s.gcr.io的代理仓库,可能会被墙,可以使用`https://hub.docker.com/r/dyrnq/kube-state-metrics`提供的镜像
# 替换image为: image: dyrnq/kube-state-metrics:v2.5.0
# 执行安装命令
$ kubectl apply -f examples/standard/
clusterrolebinding.rbac.authorization.k8s.io/kube-state-metrics configured
clusterrole.rbac.authorization.k8s.io/kube-state-metrics configured
deployment.apps/kube-state-metrics configured
serviceaccount/kube-state-metrics configured
service/kube-state-metrics configured
$ kubectl get pods -n kube-system -l app.kubernetes.io/name=kube-state-metrics
NAME                                  READY   STATUS    RESTARTS   AGE
kube-state-metrics-6d7449fc78-mgf4f   1/1     Running   0          88s

Pod 变为 Running 时安装成功。

Metricbeat

官方源yaml地址: https://github.com/elastic/beats/blob/main/deploy/kubernetes/metricbeat-kubernetes.yaml

yaml

# 配置metricbeat索引的声明周期,ElasticSearch 的索引生命周期代表了一组规则，这些规则可以根据索引的大小或长度应用于您的索引。
# 例如，索引可以每天或每次超过 1GB 时进行轮换，我们也可以根据规则配置不同的阶段。由于监控会产生大量数据，很可能一天几十G以上，所以为了防止大量数据存储，我们可以使用索引生命周期来配置数据保留
# 在如下所示的文件中，我们将索引配置为每天或每次超过 5GB 时进行轮换，并删除所有超过 3 天的索引文件
---
apiVersion: v1
kind: ConfigMap
metadata:
  namespace: kube-system
  name: metricbeat-indice-lifecycle
  labels:
    k8s-app: metricbeat
data:
  indice-lifecycle.json: |-
    {
      "policy": {
        "phases": {
          "hot": {
            "actions": {
              "rollover": {
                "max_size": "5GB" ,
                "max_age": "1d"
              }
            }
          },
          "delete": {
            "min_age": "3d",
            "actions": {
              "delete": {}
            }
          }
        }
      }
    }
---
apiVersion: v1
kind: Secret
metadata:
    name: metricbeat-ca
    namespace: kube-system
data:
    # 如果有证书,则配置证书
    ca.crt: "LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURTVENDQWpHZ0F3SUJBZ0lVWTFIQ3Qyc2RWVU9aeEVVYjhvdzRua1R4K1JBd0RRWUpLb1pJaHZjTkFRRUwKQlFBd05ERXlNREFHQTFVRUF4TXBSV3hoYzNScFl5QkRaWEowYVdacFkyRjBaU0JVYjI5c0lFRjFkRzluWlc1bApjbUYwWldRZ1EwRXdIaGNOTWpFd09ERTVNRFl4TXpNNVdoY05NalF3T0RFNE1EWXhNek01V2pBME1USXdNQVlEClZRUURFeWxGYkdGemRHbGpJRU5sY25ScFptbGpZWFJsSUZSdmIyd2dRWFYwYjJkbGJtVnlZWFJsWkNCRFFUQ0MKQVNJd0RRWUpLb1pJaHZjTkFRRUJCUUFEZ2dFUEFEQ0NBUW9DZ2dFQkFPQzZWUUJoeFBKUUhYMzQrZDdxY21QbgoyMkRvaVV0NUdERjFycEJ3Zm96Nlo4aVp5VHdNUVlncXZJRUJsUGt3MlF6WThObVVIZGg4RSt3c1c1dlFWdEg4CjFqMHFwaTFxZWNuWXpmTUNzVWVlRmVWamtTRjRMK3JYZXl2RFUyWDgvK1Y1YVhxQ2xOeVJXWUpLRFQxejFVZ00KUEQ3enFPWnFjTFVITE54bG9TMW1vYjl6N29Rekw3clRkTW11WEFBTHFwRW4zLzdnTXJHWFhqV0ZNcHNadTFxYQpSWVBqSU9oUzFKY2tyUmVydmV3RWN2bTBud3lCQnpiQWhHRFFoRCszdjdUS0xRQTBNRytwTXlTWmVSQlJPZnJDCkhWcjh4b04yYVF5bCszWWJKMDBKeGJjYlVkNUl6dWtScmVFeFJnWGRtamRKbEd5N1NMY0NwcVBXQVBXaDUya0MKQXdFQUFhTlRNRkV3SFFZRFZSME9CQllFRkhRUk1oWmJZVlB4WjlVSUxWU3NGS3dzZ3lUZk1COEdBMVVkSXdRWQpNQmFBRkhRUk1oWmJZVlB4WjlVSUxWU3NGS3dzZ3lUZk1BOEdBMVVkRXdFQi93UUZNQU1CQWY4d0RRWUpLb1pJCmh2Y05BUUVMQlFBRGdnRUJBREFRbTNhaEIxSEVTVWU0dEhiTENKaGN5TG1BZFEzdnNLcSs4Lzk3RGo3Q2cyWUEKam5ucHZJUEpVcWdtalcrYm9JL0N1WmRIN1hjZlNKWlVKdG9TbXFmMk1RQU9QOVEwZXd3aEdlKzhSNmRjYllzNwpHc3crV3drYWRoZ2R1N3JYdTBTSFNBZ0lndWVNVmNyY20xL094cEdhbzlGYWsvWEQyUDV1S3F0N0tsR0dNZVJHCjN6STduc0tQblFMTjRlcjhTR3I5SkJYTEszTGhrNHlGN0Znb05UeXBKVFVlWTRTMEN1bFpsTEhMT3MySXlWTGEKenZ0YUJ4T2l0ZjYycm5ZdjBTWWgxYWkvQXBVZ1NMSjZYd2VMK0xMUmgxSGhQR2hDSnlUUUtobFFxTnRuNmJQdQp1YnVMc2pmcm5VOEZJVHdxZDRiYkFMS3RSY1lNamRZcXYwQkQ4Z2M9Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K"
---
# 使用 ConfigMap 配置 Metricbeat,包含 ElasticSearch 地址、用户名和密码，以及有关 Kibana 配置、我们要启用的模块和爬取频率的信息
apiVersion: v1
kind: ConfigMap
metadata:
    name: metricbeat-daemonset-config
    namespace: kube-system
    labels:
        k8s-app: metricbeat
data:
    metricbeat.yml: |-
        metricbeat.config.modules:
          # Mounted `metricbeat-daemonset-modules` configmap:
          path: ${path.config}/modules.d/*.yml
          # Reload module configs as they change:
          reload.enabled: false

        metricbeat.autodiscover:
          providers:
            - type: kubernetes
              scope: cluster
              node: ${NODE_NAME}
              unique: true
              templates:
                - config:
                    # 抓取 kube-state-metrics 数据
                    - module: kubernetes
                      hosts: ["kube-state-metrics.kube-system.svc.cluster.local:8080"]
                      period: 10s
                      add_metadata: true
                      metricsets:
                        - state_node
                        - state_deployment
                        - state_daemonset
                        - state_replicaset
                        - state_pod
                        - state_container
                        - state_cronjob
                        - state_resourcequota
                        - state_statefulset
                        - state_service
                    - module: kubernetes
                      metricsets:
                        - apiserver
                      hosts: ["https://${KUBERNETES_SERVICE_HOST}:${KUBERNETES_SERVICE_PORT}"]
                      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
                      ssl.certificate_authorities:
                        - /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
                      period: 30s
                    # 打开下面的注释以获取k8s的event:
                    #- module: kubernetes
                    #  metricsets:
                    #    - event
            # To enable hints based autodiscover uncomment this:
            #- type: kubernetes
            #  node: ${NODE_NAME}
            #  hints.enabled: true

        processors:
          - add_cloud_metadata:

        #cloud.id: ${ELASTIC_CLOUD_ID}
        #cloud.auth: ${ELASTIC_CLOUD_AUTH}

        output.elasticsearch:
          hosts: ['https://${ELASTICSEARCH_HOST:elasticsearch}:${ELASTICSEARCH_PORT:9200}']
          username: ${ELASTICSEARCH_USERNAME}
          password: ${ELASTICSEARCH_PASSWORD}
          # ssl,不需要的话将下面三个去掉
          protocol: "https"
          ssl.enabled: true
          ssl.certificate_authorities:
            - /usr/share/metricbeat/ssl/ca.crt
        setup.kibana:
          host: 'https://${KIBANA_HOST:kibana}:${KIBANA_PORT:5601}'
          username: ${ELASTICSEARCH_USERNAME}
          password: ${ELASTICSEARCH_PASSWORD}
          # ssl,不需要的话将下面三个去掉
          protocol: "https"
          ssl.enabled: true
          ssl.certificate_authorities:
            - /usr/share/metricbeat/ssl/ca.crt

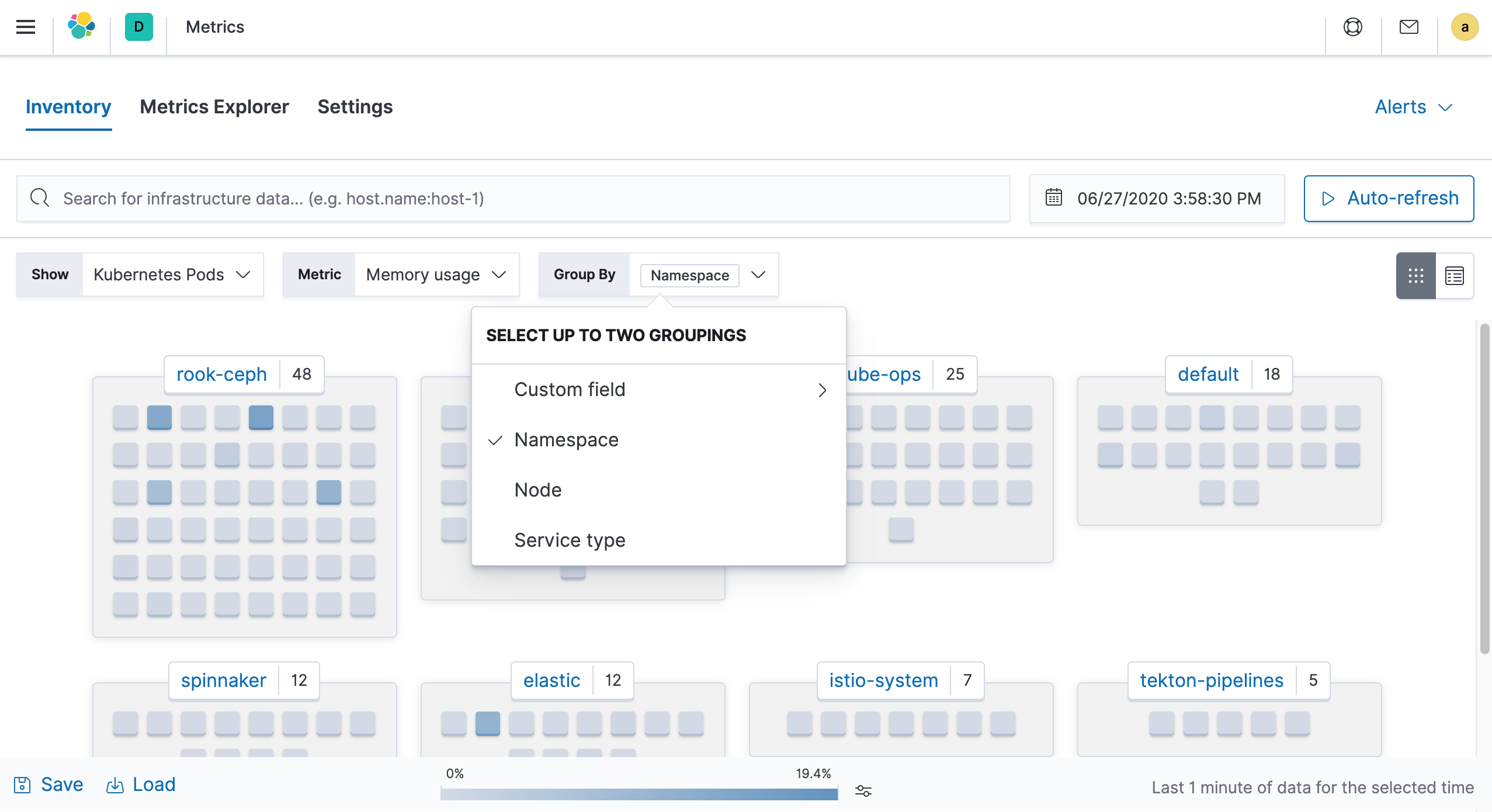

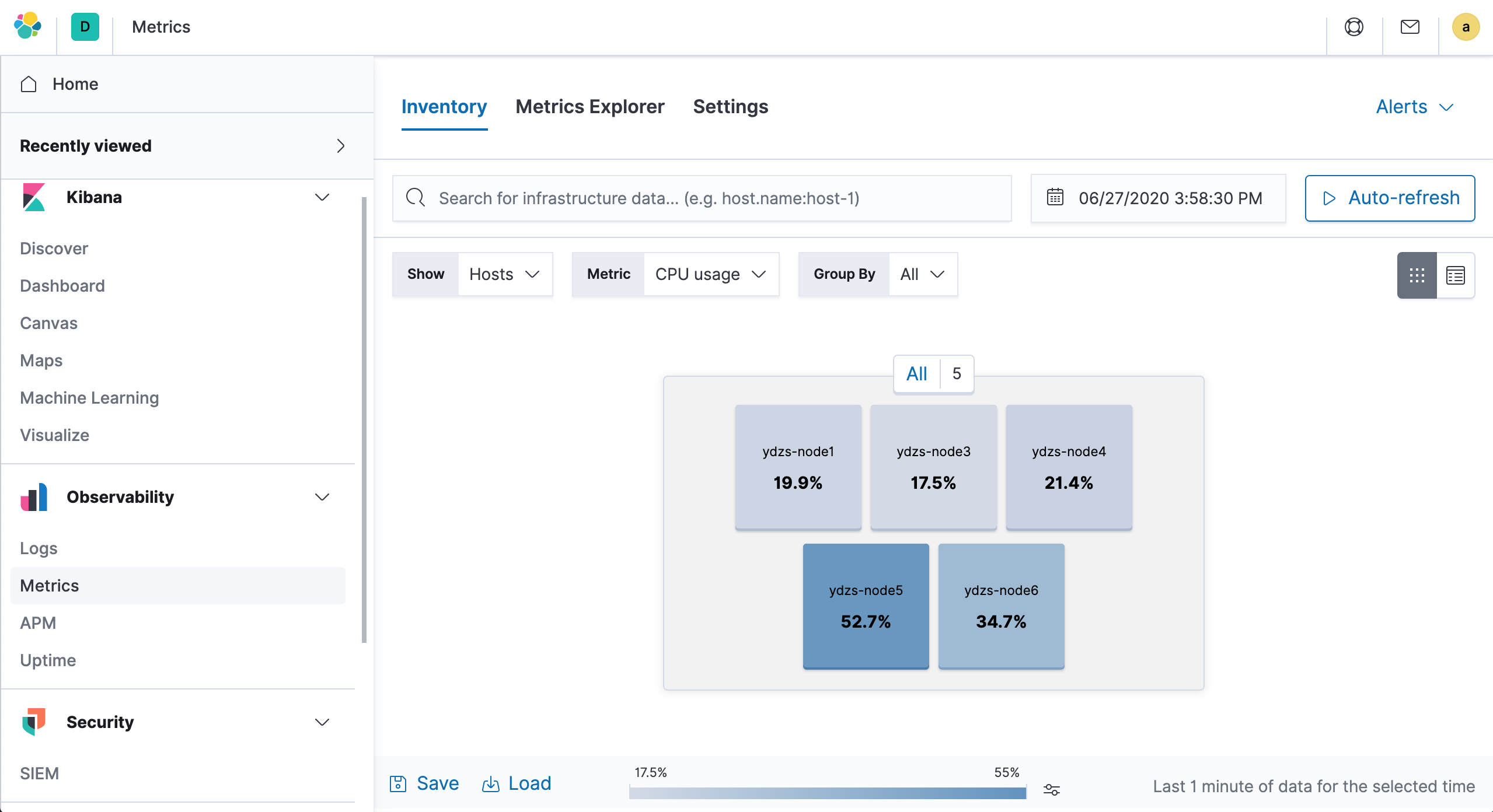

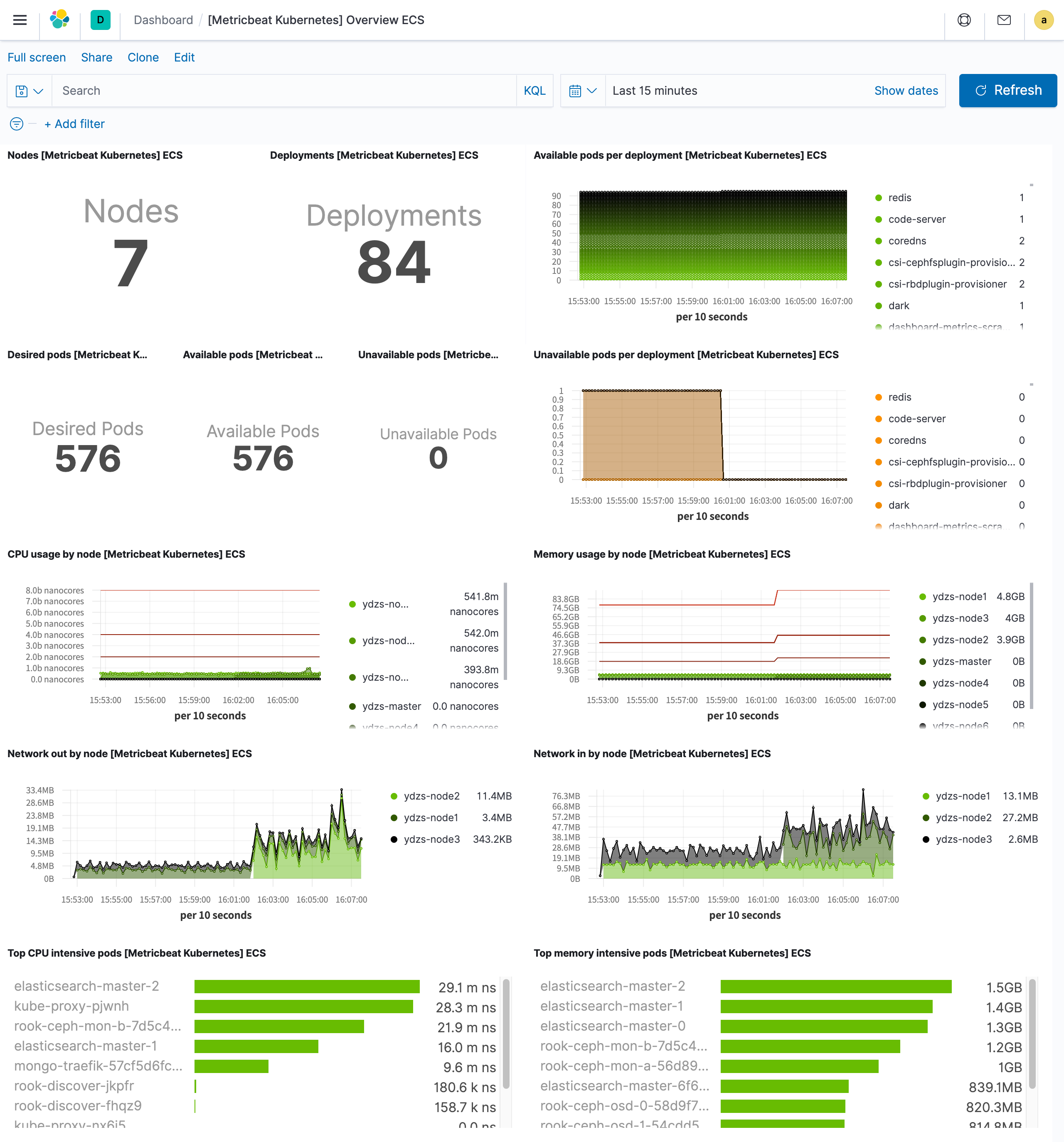

        # 导入已经存在的 Dashboard
        setup.dashboards:
          enabled: true
        # 配置 indice 生命周期
        setup.ilm:
          policy_file: /etc/indice-lifecycle.json
---
apiVersion: v1
kind: ConfigMap
metadata:
    name: metricbeat-daemonset-modules
    namespace: kube-system
    labels:
        k8s-app: metricbeat
data:
    system.yml: |-
        - module: system
          period: 10s
          metricsets:
            - cpu
            - load
            - memory
            - network
            - process
            - process_summary
            #- core
            #- diskio
            #- socket
          processes: ['.*']
          process.include_top_n:
            by_cpu: 5      # include top 5 processes by CPU
            by_memory: 5   # include top 5 processes by memory

        - module: system
          period: 1m
          metricsets:
            - filesystem
            - fsstat
          processors:
          - drop_event.when.regexp:
              system.filesystem.mount_point: '^/(sys|cgroup|proc|dev|etc|host|lib|snap)($|/)'
    kubernetes.yml: |-
        # 抓取 kubelet 监控指标
        - module: kubernetes
          metricsets:
            - node
            - system
            - pod
            - container
            - volume
          period: 10s
          host: ${NODE_NAME}
          hosts: ["https://${NODE_NAME}:10250"]
          bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
          ssl.verification_mode: "none"
          # If there is a CA bundle that contains the issuer of the certificate used in the Kubelet API,
          # remove ssl.verification_mode entry and use the CA, for instance:
          #ssl.certificate_authorities:
            #- /var/run/secrets/kubernetes.io/serviceaccount/service-ca.crt
        # Currently `proxy` metricset is not supported on Openshift, comment out section
        - module: kubernetes
          metricsets:
            - proxy
          period: 10s
          host: ${NODE_NAME}
          hosts: ["localhost:10249"]
---
# Deploy a Metricbeat instance per node for node metrics retrieval
# DaemonSet 资源对象列表
apiVersion: apps/v1
kind: DaemonSet
metadata:
    name: metricbeat
    namespace: kube-system
    labels:
        k8s-app: metricbeat
spec:
    selector:
        matchLabels:
            k8s-app: metricbeat
    template:
        metadata:
            labels:
                k8s-app: metricbeat
        spec:
            serviceAccountName: metricbeat
            terminationGracePeriodSeconds: 30
            hostNetwork: true
            dnsPolicy: ClusterFirstWithHostNet
            containers:
                - name: metricbeat
                  image: docker.elastic.co/beats/metricbeat:7.14.2
                  args: [
                          "-c", "/etc/metricbeat.yml",
                          "-e",
                          "-system.hostfs=/hostfs",
                  ]
                  env:
                      - name: KIBANA_HOST
                        value: "xxxx"
                      - name: KIBANA_PORT
                        value: "5601"
                      - name: ELASTICSEARCH_HOST
                        value: "xxxx"
                      - name: ELASTICSEARCH_PORT
                        value: "9200"
                      - name: ELASTICSEARCH_USERNAME
                        value: "elastic"
                      - name: ELASTICSEARCH_PASSWORD
                        value: "xxxx"
#                      - name: ELASTIC_CLOUD_ID
#                        value:
#                      - name: ELASTIC_CLOUD_AUTH
#                        value:
                      - name: NODE_NAME
                        valueFrom:
                            fieldRef:
                                fieldPath: spec.nodeName
                  securityContext:
                      runAsUser: 0
                      # If using Red Hat OpenShift uncomment this:
                      #privileged: true
                  resources:
                      limits:
                          memory: 200Mi
                      requests:
                          cpu: 100m
                          memory: 100Mi
                  volumeMounts:
                      - name: config
                        mountPath: /etc/metricbeat.yml
                        readOnly: true
                        subPath: metricbeat.yml
                      - name: data
                        mountPath: /usr/share/metricbeat/data
                      - name: modules
                        mountPath: /usr/share/metricbeat/modules.d
                        readOnly: true
                      - name: indice-lifecycle
                        mountPath: /etc/indice-lifecycle.json
                        readOnly: true
                        subPath: indice-lifecycle.json
                      - name: proc
                        mountPath: /hostfs/proc
                        readOnly: true
                      - name: secret
                        mountPath: /usr/share/metricbeat/ssl/ca.crt
                          # 必须添加subPath, 否则Exiting: error initializing publisher: 1 error: read /usr/share/filebeat/ssl/ca.crt: is a directory reading /usr/share/filebeat/ssl/ca.crt
                        subPath: ca.crt
                      - name: cgroup
                        mountPath: /hostfs/sys/fs/cgroup
                        readOnly: true
            volumes:
                - name: proc
                  hostPath:
                      path: /proc
                - name: cgroup
                  hostPath:
                      path: /sys/fs/cgroup
                - name: config
                  configMap:
                      defaultMode: 0640
                      name: metricbeat-daemonset-config
                - name: modules
                  configMap:
                      defaultMode: 0640
                      name: metricbeat-daemonset-modules

                - name: indice-lifecycle
                  configMap:
                    defaultMode: 0600
                    name: metricbeat-indice-lifecycle
                - name: secret
                  secret:
                      defaultMode: 0640
                      secretName: metricbeat-ca
                - name: data
                  hostPath:
                      # When metricbeat runs as non-root user, this directory needs to be writable by group (g+w)
                      path: /var/lib/metricbeat-data
                      type: DirectoryOrCreate
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
    name: metricbeat
subjects:
    - kind: ServiceAccount
      name: metricbeat
      namespace: kube-system
roleRef:
    kind: ClusterRole
    name: metricbeat
    apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
    name: metricbeat
    namespace: kube-system
subjects:
    - kind: ServiceAccount
      name: metricbeat
      namespace: kube-system
roleRef:
    kind: Role
    name: metricbeat
    apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
    name: metricbeat-kubeadm-config
    namespace: kube-system
subjects:
    - kind: ServiceAccount
      name: metricbeat
      namespace: kube-system
roleRef:
    kind: Role
    name: metricbeat-kubeadm-config
    apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
    name: metricbeat
    labels:
        k8s-app: metricbeat
rules:
    - apiGroups: [""]
      resources:
          - nodes
          - namespaces
          - events
          - pods
          - services
      verbs: ["get", "list", "watch"]
    # Enable this rule only if planing to use Kubernetes keystore
    #- apiGroups: [""]
    #  resources:
    #  - secrets
    #  verbs: ["get"]
    - apiGroups: ["extensions"]
      resources:
          - replicasets
      verbs: ["get", "list", "watch"]
    - apiGroups: ["apps"]
      resources:
          - statefulsets
          - deployments
          - replicasets
      verbs: ["get", "list", "watch"]
    - apiGroups:
          - ""
      resources:
          - nodes/stats
      verbs:
          - get
    - nonResourceURLs:
          - "/metrics"
      verbs:
          - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
    name: metricbeat
    # should be the namespace where metricbeat is running
    namespace: kube-system
    labels:
        k8s-app: metricbeat
rules:
    - apiGroups:
          - coordination.k8s.io
      resources:
          - leases
      verbs: ["get", "create", "update"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
    name: metricbeat-kubeadm-config
    namespace: kube-system
    labels:
        k8s-app: metricbeat
rules:
    - apiGroups: [""]
      resources:
          - configmaps
      resourceNames:
          - kubeadm-config
      verbs: ["get"]
---
apiVersion: v1
kind: ServiceAccount
metadata:
    name: metricbeat
    namespace: kube-system
    labels:
        k8s-app: metricbeat
